BC0201( Unmanaged , 2 100Base-Tx , 0/1 100Base-Fx)

l Profile

Non-managed Industrial Ethernet Switch ;

2 10Base-T/100Base-Tx electrical ports ( RJ45 ) ,  1 100Base-Fx fiber optical port ;

Dual Input of DC 24V Power Supply ;

High-efficiency heat dissipation fan-free design , compact size ;

Good EMC performance , stable and reliable .

Suitable for electric power , military industry , rail transit , industrial automation and other industries ;

l Technical Specifications

²  Operation mode And Port type

Switching mode :  Storage and forwarding , Second layer switching , Support wire-speed forwarding on all ports ;

Port type and quantity :

2 10Base-T/100Base-Tx electrical ports ( RJ45) , Full-Duplex / Half-Duplex , Rate and duplex auto negotiation ; MDI / MDI-X Auto Crossover ;

1 100Base-Fx fiber optical port ;

Network Topology :  Chain / Star ;

Flow Control :  IEEE802.3X flow control ( Full-duplex ) ,  Back pressure flow control ;

²  Power supply

           Input Power :  Dual Input of DC 24V ;

  Overall Power Consumption :  < 5W ;

  Providing reverse connection protection ;

²  Switching paramater

Cache capacity :  256 Kbits ;

MAC address table :  1 K ;

Address learning rate :  148809pps ;

²  Panel indication :  LEDs ( power , link status , port rate ) ;

²  Environment conditions

Operating temperature :

Model T1 :  -25°C ~ +70°C ;

Model T2 :  -40°C ~ +85°C ;

Storage/transport temperature :  -40°C ~ +85°C ;

Relative humidity :  10～90%， Non condensing ;

²  Mechanical structure

Protection Class :  IP40、Metal shell ;

Dimensions ( W x H x D ) :  37 x 110 x 76 ( mm ) ;

Installation :  DIN Rail ;

²  EMC Level

IEC61,000-4-2    3 LEVEL  、  IEC61,000-4-6    2 LEVEL

IEC61,000-4-3    2 LEVEL  、  IEC61,000-4-8    4 LEVEL

IEC61,000-4-4    3 LEVEL  、  IEC61,000-4-9    4 LEVEL

IEC61,000-4-5    3 LEVEL  、  IEC61,000-4-12   2 LEVEL

²  MTBF ( Mean Time Between Failure )

> 20 years ;

²  Defects liability period

5 years ;

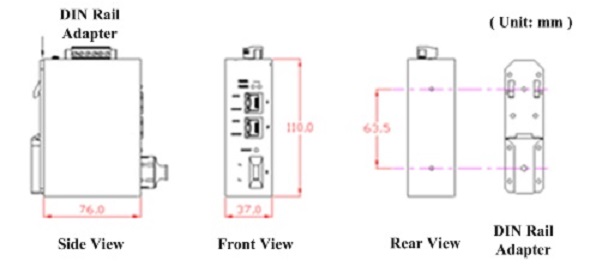

Installation dimension :
