BC0602-MB ( Managed , 6 100Base-Tx , 2 100Base SFP )

l Profile

Managed Industrial Ethernet Switch ;

6 10Base-T/100Base-Tx electrical ports ( RJ45 ) ;  0/1/2 optional 100Base-Fx SFP fiber optical ports ;

Dual Input of DC 24V Power Supply ;

High-efficiency heat dissipation fan-free design , compact size ;

Support Single-Ring and Multi-Ring Networking ;

Good EMC performance , stable and reliable .

Suitable for electric power , military industry , rail transit , industrial automation and other industries ;

l Technical Specifications

²  Operation mode And Port type

Switching mode :  Storage and forwarding , Second layer switching , Support wire-speed forwarding on all ports ;

Port type and quantity :

6 10Base-T/100Base-Tx electrical ports ( RJ45) , Full-Duplex / Half-Duplex , Rate and duplex auto negotiation ; MDI / MDI-X Auto Crossover ;

2 100M SFP interfaces , Pluggable various 100M optical fiber port accessories ( LC ) ;

1 Network management ethernet port ( RJ45 ) , 1 network management serial port ( RJ45 ) ;

Network Topology :  Chain / Star / Ring ;

²  Power supply

            Input Power :  Dual Input of DC 24V ;

   Overall Power Consumption :  < 20W ;

   Providing reverse connection protection ;

²  Switching paramater

Cache capacity :  12 Mbits ;

MAC address table :  16 K ;

Address learning rate :  148809 pps / 1488095 pps ;

²  Functional characteristics

Flow Control :         IEEE802.3X flow control ( Full-duplex ) , Back pressure flow control ;

Storm Control :  Automatic broadcast storm control ;

VLAN :  IEEE802.1Q VLAN ;

Port isolation :  Support Port-based isolation ;

Qos :

Ethernet frame type based ,

Flow based ,

Priority based ,

Port priority queue based ,

Queue schedule :  SP, WRR, SP and WRR mixed ;

ACL (Access Control List ) :  ACL supporting Layer 2 , Layer3 , Layer4 ;

Diagnosis :  Support virtual cable detection and SPF port digital detection ;

statistics :  Support port snapshot and port statistics ;

Spanning Tree Protocol :

Support IEEE802.1W ( RSTP ) ,

Compatible with IEEE802.1D ( STP ) ;

ERPP ( Ethernet Ring Protection Protocol ) :

    Support Single-Ring and Multi-Ring Networking ,

    The recovery time of single link failure is less than 50 ms ;

SNMP :  Support SNMP V1/V2C/V3 , MIBII , Bridge MIB , EtherLike MIB ;

SNTP : Support SNTP ;

Multicast :  Support Static Multicast Address Managemen ;

Management :

Support WEB-based network management ,

Support SNMP-based network management ,

Support network management through business data ports ;

²  Panel indication :  LEDs ( power , link status , port rate ) ;

²  Environment conditions

Operating temperature :

Model T1 :  -25°C ~ +70°C ;

Model T2 :  -40°C ~ +85°C ;

Storage/transport temperature :  -40°C ~ +85°C ;

Relative humidity :  10～90%， Non condensing ;

²  Mechanical structure

Protection Class :  IP40、Metal shell ;

Dimensions ( W x H x D ) :  50 x 155 x 97 (mm) ;

Installation :  DIN Rail ;

²  EMC Level

IEC61,000-4-2    4 LEVEL  、  IEC61,000-4-6    3 LEVEL

IEC61,000-4-3    3 LEVEL  、  IEC61,000-4-8    5 LEVEL

IEC61,000-4-4    4 LEVEL  、  IEC61,000-4-9    5 LEVEL

IEC61,000-4-5    4 LEVEL  、  IEC61,000-4-12   3 LEVEL

²  MTBF ( Mean Time Between Failure )

> 20 years ;

²  Defects liability period

5 years ;

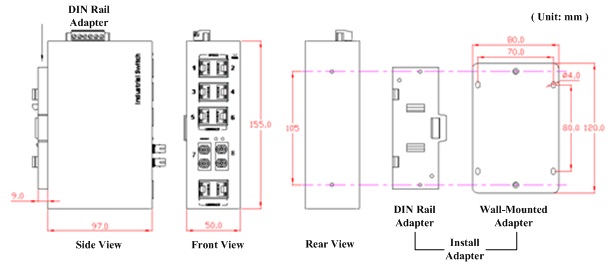

Installation dimension :

SFP Optical Fiber Port ( LC Connector ) :

Typical configuration :
